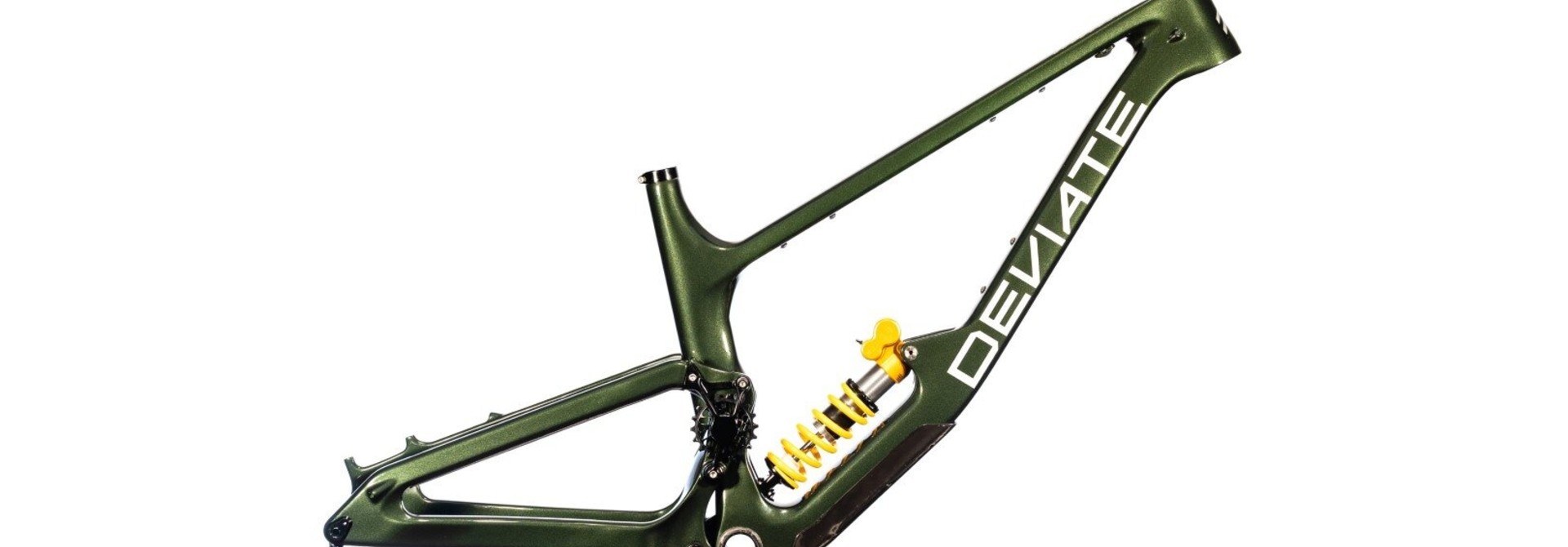

Deviate Cycles Deviate Cycles Claymore Frame Only

The Deviate Claymore full-suspension mountain bike (MTB) frame features a full-carbon make-up, designed to work with 29" wheels front and rear. The frame is optimised for enduro racing where it offers an unrivalled balance of high-speed control and excellent pedalling efficiency for all-day riding comfort thanks to our meticulously tested high-pivot suspension design . The frame is compatible with both 180mm and 170mm long travel forks for the front travel and 165mm of travel for the rear wheel.

Rear Wheel: 29”, Boost: 148mm * 12mm

Fork Compatibility: 29” 170 or 180mm with 44/42mm offset

Bottom Bracket: 73mm BSA Threaded

Headset: ZS44/28.6 upper and a ZS56/40 lower headset cup

Cranks: Minimum Q-factor of 168mm

Chainline: 52mm

Chain length: 126 links (widely available, no need to join chains)

Max Chainring Size: 36t

Shock Size: Metric 230*60mm

Shock Hardware: Front: 40*8mm | Rear: Eyelet bushing

Brake Mount: Post Mount 180mm

Seatpost Compatibility: Internal dropper routing with internal cable routing. 34.9”

Seat Collar: 38.5mm

Mech hanger: Deviate Derailleur Hanger (Highlander/Claymore)

Rear Axle: M12xP1.75 | 192mm long | Thread length is 26mm (minimum 20mm)
